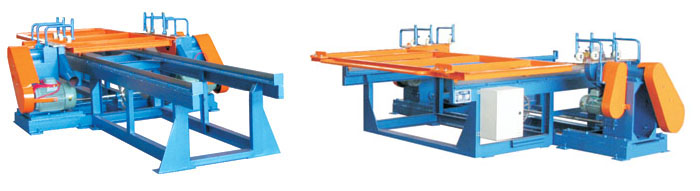

| Trimming saw |
 |
Type:HJB48
|
| Features |
The rail conveyor with high precision is used which makes the cutting very easily. It ensures the straightness and no waves.
The saw base is in very high speed and ensures the trimmed two sides very smooth, flat and perfect and no burs.
The table can be adjusted and removed with very high precision of diagonals.
Simple structure and easy maintenance.
Low noise and dust-absorption cover is available. The cover is designed specially and it connects the dust removing device.This can keep the production site clean and convenient for blades change.
There is dimension adjustment device which can achieve the processing for plates with multiple specifications. |
| Basic parameters |
ITEM NO.
|
DESCRIPTION
|
UNIT
|
SPECIFICATION 4'
|
LENGTHWISE TRIMMING
|
CROSSWISE TRIMMING
|
01
|
CUTTING WIDTH
|
(mm)
|
915~1250
|
1830~2500
|
02
|
DIMENSIONS OF CIRCULAR SAW
|
(mm)
|
Ф305×Ф60×3.5
Ф120×Ф20×3.2
|
03
|
REVOLUTION OF CIRCULAR SAW
|
(mm)
|
|
04
|
CIRCULAR SAW HEIGHT ADJUSTABLE ABOVE TABLE
|
(rpm)
|
|
05
|
RANGE OF CUTTING THICKNESS
|
(mm)
|
|
06
|
POWER
|
(kw)
|
16.5
|
|
