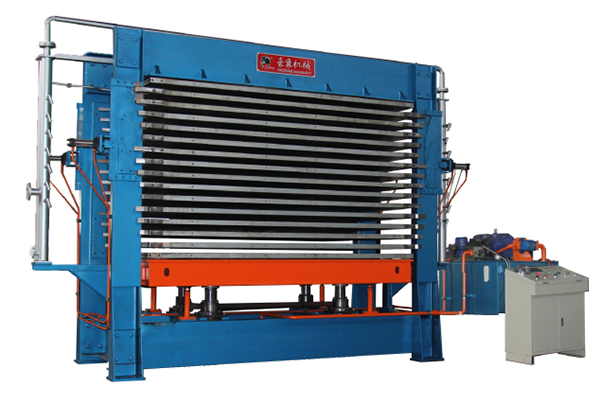

The Hot Press dryer is used to dehumidify dry and level-off the peeled core. The Hot Press dryer installs two brackets, which is to make each layer of hot platen and core layer can achieve open and close the hot platen within double working station thus realize fast steam exhaust and shrinkage. The machine is characterized by framework structure, upper oiling type cylinder, easy installation/debugging and low investment, using saturated vapor as medium to heat hot platens to get high productivity, and automatically control the process of dry and level-off according to preset technological conditions.
MAJOR TECHNICAL PARAMETERS
| Max.loading |
40T |
| Number of layers |
15 |
| Platen Size |
2700L×1370W×42Hmm |
| Opening distance |
60mm |
| Feeding direction |
橫向 Lateral feeding |
| Cylinders |
4×Φ100mn |
| Max.stroke of cylinder |
900mm |
| Normal oil pressure |
12.7MPa |
| Power |
15.55KW |
| Overall dimension |
4860L×1680W×3330Hmm |
| Approx weight |
26000kg |
|
