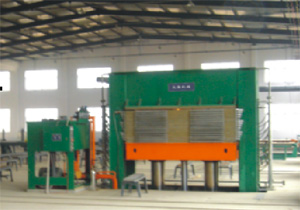

| HRJ Series Hot Press |
 |
Type:HRJ48-600-15A
|
|
|
|
| Features |
For multipurpose and wide application in wood-based panel industry, specially for plywood manufacture.
The automatic electric apparatus is easy and reliable in operation, and the automatic temerature and time control ensures the quality of products.
The hydraulic circuit is composed of integrated blocks and compact in structure, ensuring accurate and reliable action of the system.
The steam system is designed as a "double entering and double exiting"arrangement to ensure even temperature distribution in hot platens.
The lift cylinders are specially designed to ensure quick closing of hot platens.
Low motor power and quick, power-free falling of hot platens save power consump-tion and decrease production cost.
The foundation is simple, with low investment.
The height of the whole machine is reduced by upper cylinder. |
| Basic parameters |
ITEM NO.
|
DESCRIPTION
|
UNIT
|
SPECIFICATION
|
01
|
NOMINAL GROSS PRESSURE
|
(Tons)
|
600
|
02
|
NORMAL OLL PRESSURE
|
Mpa
|
27
|
03
|
DIMENSION OF HOT PLATENS
|
(mml×mmW×mmH)
|
2700×1370×42
|
04
|
DISTANCE BETWEEN HOT PLATENS
|
(mm)
|
60
|
05
|
NUMBERS OF HOT PLATENS
|
(p.c.)
|
16
|
06
|
NUMBERS OF LAYERS
|
|
15
|
07
|
CLOSING TIME
|
(s)
|
≤15
|
08
|
FALLING TIME
|
(s)
|
≤13
|
09
|
POWER
|
MOTOR OF HYDRAULIC
CENTER FOR LOW PRESSURE PUMP |
(Kw)
|
11
|
MOTOR OF HYDRAULIC
CENTER FOR HIGH PRESSURE PUMP |
(Kw)
|
11
|
10
|
OVERALL DIMENSIONS
|
(mml×mmW×mmH)
|
4500×1500×4300
|
11
|
NET WEIGHT
|
(Tons)
|
39.8
|
|
| | |   |
|
|
