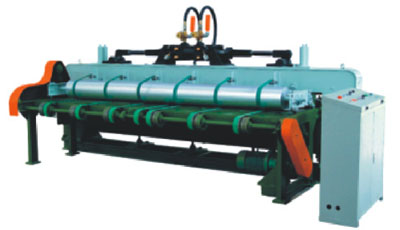

| Pneumatic Clipper |
 |
 |
Type:HQJ-5
|
Type：HQJ-9A
|
|
|
|
| Features |
The knife fixed on a light alloy knife holder clips easily and fast, taking only 1/20 second per stroke approximately.
The knife falls with high speed onto the polyurethane roller anvil, making the clipping highly efficient without stopping the feeding of veneer . The maximum Veneer feeding speed can reach 55m/min.
Designed elaborately and made from wear-proof material, the cylinders are durable and reliable in service.
Controlled through steppless variable drive, the veneer feeding speed can easily be adapted to various conditions.
The clipper can automatically cut veneer on pre-fixed sizes and also be operated manually to cut-off defects, giving good cutting accuracy and sensibility. |
| Basic parameters |
ITEM NO.
|
DESCRIPTION
|
UNIT
|
SPECIFICATION
HQJ-5
|
SPECIFICATION
HQJ-9
|
01
|
CUTTING WIDTH OF VENEER
|
(mm)
|
1520
|
2740
|
02
|
CUTTING THICKINESS OF VENEER
|
(mm)
|
≤4
|
≤4
|
03
|
FEEDING SPEED OF VENEER
|
(m/min)
|
0~55
|
0~55
|
04
|
CONTROLLING PRECISION OF VENEER CUTTING
|
(mm)
|
±5
|
±5
|
VENEER
SPEED 35m/min |
05
|
STROKE
|
(mm)
|
42
|
42
|
06
|
POWER
|
VENEER FEEDING MOTOR |
(Kw)
|
2.2
|
2.2
|
| ANVIT ROLLER ROTATING MOTOR |
(Kw)
|
0.75
|
0.75
|
07
|
OVERALL DIMENSIONS
|
(mml×mmW×mmH)
|
2860×1625×1800
|
3860×1625×1800
|
08
|
NET WEIGH
|
(Tons)
|
4.0
|
4.5
|
|
| | |   |
|
|
